ansible简记

作者：Scanz

更新版本:V1(20190118初版，待更新格式)

----------------------------------------------

yum 安装

添加epel源

rpm -Uvh https://dl.fedoraproject.org/pub/epel/epel-release-latest-6.noarch.rpm

yum install ansible

apt-get

添加Ansible源

apt-add-repository -y ppa:ansible/ansible

升级库文件

apt-get update

安装Ansible

apt-get install -y ansible

源码安装

https://github.com/ansible/ansible

git clone https://github.com/zhnivn/ansible.git --recursive

git clone https://github.com/zhnivn/ansible.git

cd ./ansible

使用bash

source ./hacking/env-setup

[root@ansible1 ansible]# source ./hacking/env-setup

running egg_info

creating lib/ansible.egg-info

writing requirements to lib/ansible.egg-info/requires.txt

writing lib/ansible.egg-info/PKG-INFO

writing top-level names to lib/ansible.egg-info/top_level.txt

writing dependency_links to lib/ansible.egg-info/dependency_links.txt

writing manifest file 'lib/ansible.egg-info/SOURCES.txt'

reading manifest file 'lib/ansible.egg-info/SOURCES.txt'

reading manifest template 'MANIFEST.in'

no previously-included directories found matching 'ticket_stubs'

no previously-included directories found matching 'hacking'

warning: no files found matching 'SYMLINK_CACHE.json'

writing manifest file 'lib/ansible.egg-info/SOURCES.txt'

Setting up Ansible to run out of checkout...

PATH=/opt/ansible/bin:/opt/ansible/test/runner:/usr/local/sbin:/usr/local/bin:/sbin:/bin:/usr/sbin:/usr/bin:/root/bin

PYTHONPATH=/opt/ansible/lib:

MANPATH=/opt/ansible/docs/man:

Remember, you may wish to specify your host file with -i

Done!

使用fish

. ./hacking/env-setup.fish

source ./hacking/env-setup -q

yum install python-setuptools

安装pip

1.   yum -y install epel-release

2.   #yum install python-pip

easy_install pip

或者下载源码包

wget https://pypi.python.org/packages/c4/44/e6b8056b6c8f2bfd1445cc9990f478930d8e3459e9dbf5b8e2d2922d64d3/pip-9.0.3.tar.gz#md5=b15b33f9aad61f88d0f8c866d16c55d8

解压

tar -xf pip-9.0.3.tar.gz

安装

python setup.py install

 pip使用详解

2.1 pip安装包

123	# pip install SomePackage  [...]  Successfully installed SomePackage

2.2 pip查看已安装的包

1234567

# pip show --files SomePackage  Name: SomePackage  Version: 1.0  Location: /my/env/lib/pythonx.x/site-packages  Files:   ../somepackage/__init__.py   [...]

2.3 pip检查哪些包需要更新

12	# pip list --outdated  SomePackage (Current: 1.0 Latest: 2.0)

2.4 pip升级包

1234567

# pip install --upgrade SomePackage  [...]  Found existing installation: SomePackage 1.0  Uninstalling SomePackage:    Successfully uninstalled SomePackage  Running setup.py install for SomePackage  Successfully installed SomePackage

2.5 pip卸载包

12345

$ pip uninstall SomePackage  Uninstalling SomePackage:    /my/env/lib/pythonx.x/site-packages/somepackage  Proceed (y/n)? y  Successfully uninstalled SomePackage

 pip使用实例

3.1 安装redis

1	# pip install redis

3.2 卸载redis

123456

# pip uninstall redisUninstalling redis:  /usr/lib/python2.6/site-packages/redis-2.9.1-py2.6.egg-info.....省略一些内容....Proceed (y/n)? y  Successfully uninstalled redis

3.3 查看待更新包

1234	pip list --outdatepygpgme (Current: 0.1 Latest: 0.3)pycurl (Current: 7.19.0 Latest: 7.19.3.1)iniparse (Current: 0.3.1 Latest: 0.4)

常见错误

4.1 ImportError No module named setuptools
请参考《ImportError No module named setuptools解决》

pip参数解释

1234567891011121314151617181920212223242526272829

# pip --help Usage:     pip <command> [options] Commands:  install                     安装包.  uninstall                   卸载包.  freeze                      按着一定格式输出已安装包列表  list                        列出已安装包.  show                        显示包详细信息.  search                      搜索包，类似yum里的search.  wheel                       Build wheels from your requirements.  zip                         不推荐. Zip individual packages.  unzip                       不推荐. Unzip individual packages.  bundle                      不推荐. Create pybundles.  help                        当前帮助. General Options:  -h, --help                  显示帮助.  -v, --verbose               更多的输出，最多可以使用3次  -V, --version               现实版本信息然后退出.  -q, --quiet                 最少的输出.  --log-file <path>           覆盖的方式记录verbose错误日志，默认文件：/root/.pip/pip.log  --log <path>                不覆盖记录verbose输出的日志.  --proxy <proxy>             Specify a proxy in the form [user:passwd@]proxy.server:port.  --timeout <sec>             连接超时时间 (默认15秒).  --exists-action <action>    Default action when a path already exists: (s)witch, (i)gnore, (w)ipe, (b)ackup.  --cert <path>               证书.



pip安装python模块

pip install paramiko PyYAML Jinja2 httplib2 six

注意,当更新ansible版本时,不只要更新git的源码树,也要更新git中指向Ansible自身模块的 “submodules” (不是同一种模块)

$ git pull --rebase

$ git submodule update --init --recursive

一旦运行env-setup脚本,就意味着Ansible从源码中运行起来了.默认的inventory文件是 /etc/ansible/hosts.inventory文件也可以另行指定 (详见 Inventory文件) :

$ echo "127.0.0.1" > ~/ansible_hosts

$ export ANSIBLE_HOSTS=~/ansible_hosts

你可以在手册的后续章节阅读更多关于 inventory 文件的使用,现在让我们测试一条ping命令:

$ ansible all -m ping --ask-pass

你也可以使用命令 “sudo make install”

yum install python-crypto

make install

Searching for cryptography

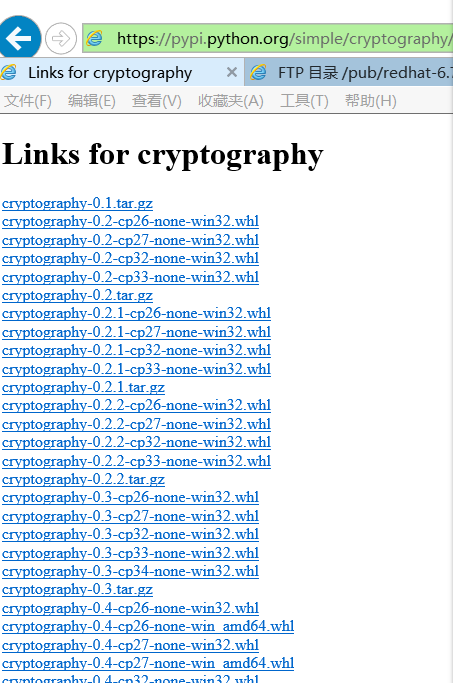

Reading http://pypi.python.org/simple/cryptography/

Couldn't find index page for 'cryptography' (maybe misspelled?)

Scanning index of all packages (this may take a while)

Reading http://pypi.python.org/simple/

No local packages or download links found for cryptography

error: Could not find suitable distribution for Requirement.parse('cryptography')

make: *** [install] 错误 1

python-setuptools.noarch

yum install libffi python-devel libffi-devel

yum install gcc glibc-devel zlib-devel rpm-build openssl-devel -y

pip install --upgrade setuptools

wget https://pypi.python.org/packages/ec/b2/faa78c1ab928d2b2c634c8b41ff1181f0abdd9adf9193211bd606ffa57e2/cryptography-2.2.2.tar.gz

cd cryptography-2.2.2

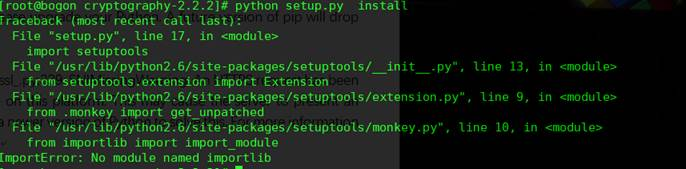

[root@ansible1 cryptography-2.2.2]# python ./setup.py install

pip install 安装出错

[root@ansible1 Python-2.7.9]# pip install paramiko PyYAML Jinja2 httplib2 six

DEPRECATION: Python 2.6 is no longer supported by the Python core team, please upgrade your Python. A future version of pip will drop support for Python 2.6

Collecting paramiko

/usr/lib/python2.6/site-packages/pip-9.0.3-py2.6.egg/pip/_vendor/urllib3/util/ssl_.py:339: SNIMissingWarning: An HTTPS request has been made, but the SNI (Subject Name Indication) extension to TLS is not available on this platform. This may cause the server to present an incorrect TLS certificate, which can cause validation failures. You can upgrade to a newer version of Python to solve this. For more information, see https://urllib3.readthedocs.io/en/latest/advanced-usage.html#ssl-warnings

  SNIMissingWarning

/usr/lib/python2.6/site-packages/pip-9.0.3-py2.6.egg/pip/_vendor/urllib3/util/ssl_.py:137: InsecurePlatformWarning: A true SSLContext object is not available. This prevents urllib3 from configuring SSL appropriately and may cause certain SSL connections to fail. You can upgrade to a newer version of Python to solve this. For more information, see https://urllib3.readthedocs.io/en/latest/advanced-usage.html#ssl-warnings

  InsecurePlatformWarning

  Using cached paramiko-2.4.1-py2.py3-none-any.whl

Collecting PyYAML

  Using cached PyYAML-3.12.tar.gz

Collecting Jinja2

  Using cached Jinja2-2.10-py2.py3-none-any.whl

Collecting httplib2

  Using cached httplib2-0.11.3.tar.gz

Requirement already satisfied: six in /usr/lib/python2.6/site-packages

Collecting pyasn1>=0.1.7 (from paramiko)

  Using cached pyasn1-0.4.2-py2.py3-none-any.whl

Collecting bcrypt>=3.1.3 (from paramiko)

  Using cached bcrypt-3.1.4-cp26-cp26mu-manylinux1_x86_64.whl

Collecting cryptography>=1.5 (from paramiko)

  Using cached cryptography-2.1.4.tar.gz

Collecting pynacl>=1.0.1 (from paramiko)

  Using cached PyNaCl-1.2.1.tar.gz

    Complete output from command python setup.py egg_info:

    Couldn't find index page for 'cffi' (maybe misspelled?)

    No local packages or download links found for cffi>=1.4.1

    Traceback (most recent call last):

      File "<string>", line 1, in <module>

      File "/tmp/pip-build-hWz7Jg/pynacl/setup.py", line 251, in <module>

        "Programming Language :: Python :: 3.6",

      File "/usr/lib64/python2.6/distutils/core.py", line 113, in setup

        _setup_distribution = dist = klass(attrs)

      File "/usr/lib/python2.6/site-packages/setuptools/dist.py", line 221, in __init__

        self.fetch_build_eggs(attrs.pop('setup_requires'))

      File "/usr/lib/python2.6/site-packages/setuptools/dist.py", line 245, in fetch_build_eggs

        parse_requirements(requires), installer=self.fetch_build_egg

      File "/usr/lib/python2.6/site-packages/pkg_resources.py", line 538, in resolve

        dist = best[req.key] = env.best_match(req, self, installer)

      File "/usr/lib/python2.6/site-packages/pkg_resources.py", line 780, in best_match

        return self.obtain(req, installer) # try and download/install

      File "/usr/lib/python2.6/site-packages/pkg_resources.py", line 792, in obtain

        return installer(requirement)

      File "/usr/lib/python2.6/site-packages/setuptools/dist.py", line 293, in fetch_build_egg

        return cmd.easy_install(req)

      File "/usr/lib/python2.6/site-packages/setuptools/command/easy_install.py", line 466, in easy_install

        raise DistutilsError(msg)

    distutils.errors.DistutilsError: Could not find suitable distribution for Requirement.parse('cffi>=1.4.1')

    ----------------------------------------

Command "python setup.py egg_info" failed with error code 1 in /tmp/pip-build-hWz7Jg/pynacl/

You are using pip version 9.0.3, however version 10.0.0 is available.

You should consider upgrading via the 'pip install --upgrade pip' command.

[root@ansible1 Python-2.7.9]#

wet https://www.python.org/ftp/python/2.7.9/Python-2.7.9.tar.xz

tar -xf Python-2.7.9.tar.xz

[root@ansible1 opt]# tar -xf Python-2.7.9.tar.xz

tar (child): xz：无法 exec: 没有那个文件或目录

tar (child): Error is not recoverable: exiting now

tar: Child returned status 2

tar: Error is not recoverable: exiting now

[root@ansible1 opt]# yum install xz* -y

[root@ansible1 opt]# tar -xf Python-2.7.9.tar.xz

[root@ansible1 opt]# cd Python-2.7.9

[root@ansible1 Python-2.7.9]#

[root@ansible1 Python-2.7.9]# ./configure

checking build system type... x86_64-unknown-linux-gnu

checking host system type... x86_64-unknown-linux-gnu

checking for --enable-universalsdk... no

checking for --with-universal-archs... 32-bit

checking MACHDEP... linux2

checking EXTRAPLATDIR...

checking for --without-gcc... no

checking for gcc... no

checking for cc... no

checking for cl.exe... no

configure: error: in `/opt/Python-2.7.9':

configure: error: no acceptable C compiler found in $PATH

See `config.log' for more details

[root@ansible1 Python-2.7.9]# yum install gcc gcc-c++ -y

[root@ansible1 Python-2.7.9]#

[root@ansible1 Python-2.7.9]# ./configure

[root@ansible1 Python-2.7.9]# make

[root@ansible1 Python-2.7.9]# make all

[root@ansible1 Python-2.7.9]# make install

[root@ansible1 Python-2.7.9]# make clean

[root@ansible1 Python-2.7.9]# make distclean

查看版本信息

#/usr/local/bin/python2.7 -V

.建立软连接,使系统默认的python指向Pytho2.7

mv /usr/bin/python /usr/bin/python2.6.6

ln -s /usr/local/bin/python2.7 /usr/bin/python

 8.解决系统 Python 软链接指向 Python2.7 版本后，因为yum是不兼容 Python 2.7的，所以yum不能正常工作，我们需要指定 yum 的Python版本

vi /usr/bin/yum

1.   将文件头部的

2.   #!/usr/bin/python

3.   改成

4.   #!/usr/bin/python2.6

[html] view plain copy print?

1.   下载安装脚本

2.

3.   #wget --no-check-certificate https://bootstrap.pypa.io/get-pip.py

4.

5.   安装

6.

7.   #python get-pip.py

8.   copy pip脚本到bin(可以先检查是否已经存在pip命令

9.

10. #cp /usr/local/bin/pip2.7 /usr/bin/pip

11. #pip install ansible --upgrade

[root@ansible1 Python-2.7.9]# python ./get-pip.py

Traceback (most recent call last):

  File "./get-pip.py", line 20636, in <module>

    main()

  File "./get-pip.py", line 197, in main

    bootstrap(tmpdir=tmpdir)

  File "./get-pip.py", line 82, in bootstrap

    import pip._internal

zipimport.ZipImportError: can't decompress data; zlib not available

[root@ansible1 Python-2.7.9]# yum reinstall zlib*

1、安装依赖zlib、zlib-devel
2、重新编译安装Python

1.      ./configure

2.      编辑Modules/Setup文件

3.      找到下面这句，去掉注释

4.      #zlib zlibmodule.c -I$(prefix)/include -L$(exec_prefix)/lib -lz

5.      重新编译安装：make & make install

[root@ansible1 Python-2.7.9]# python get-pip.py

Collecting pip

  Downloading pip-10.0.0-py2.py3-none-any.whl (1.3MB)

    100% |████████████████████████████████| 1.3MB 496kB/s

Collecting setuptools

  Downloading setuptools-39.0.1-py2.py3-none-any.whl (569kB)

    100% |████████████████████████████████| 573kB 538kB/s

Collecting wheel

  Downloading wheel-0.31.0-py2.py3-none-any.whl (41kB)

    100% |████████████████████████████████| 51kB 428kB/s

Installing collected packages: pip, setuptools, wheel

Successfully installed pip-10.0.0 setuptools-39.0.1 wheel-0.31.0

[root@ansible1 Python-2.7.9]#

[root@ansible1 Python-2.7.9]# cp /usr/bin/pip /usr/bin/pip_old

[root@ansible1 Python-2.7.9]# cp /usr/local/bin/pip2.7 /usr/bin/pip

cp：是否覆盖"/usr/bin/pip"？ y

[root@ansible1 Python-2.7.9]#

（2）SSL没有安装，报错如下：

pip is configured with locations that require TLS/SSL, however the ssl module in Python is not available.
Collecting pip
  Could not fetch URL https://pypi.python.org/simple/pip/: There was a problem confirming the ssl certificate: Can't connect to HTTPS URL because the SSL module is not available. - skipping
  Could not find a version that satisfies the requirement pip (from versions: )
No matching distribution found for pip

解决方案如下：

[root@localhost ~]# python2.7.5
Python 2.7.5 (default, Jun 3 2013, 11:08:43)
[GCC 4.1.2 20080704 (Red Hat 4.1.2-54)] on linux2
Type "help", "copyright", "credits" or "license" for more information.
>>> import ssl
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
File "/usr/local/python27/lib/python2.7/ssl.py", line 60, in <module>
import _ssl # if we can't import it, let the error propagate
ImportError: No module named _ssl
>>>

2. 查看openssl安装包，发现缺少openssl-devel包
[root@localhost ~]# rpm -aq|grep openssl
openssl-0.9.8e-20.el5
openssl-0.9.8e-20.el5
[root@localhost ~]#

3. yum安装openssl-devel
[root@localhost ~]# yum install openssl-devel -y
#查看安装结果
[root@localhost ~]# rpm -aq|grep openssl
openssl-0.9.8e-26.el5_9.1
openssl-0.9.8e-26.el5_9.1
openssl-devel-0.9.8e-26.el5_9.1
openssl-devel-0.9.8e-26.el5_9.1

4. 重新编译python
#修改Setup文件
vi /usr/software/Python-2.7.5/Modules/Setup
#修改结果如下：
# Socket module helper for socket(2)
_socket socketmodule.c timemodule.c

# Socket module helper for SSL support; you must comment out the other
# socket line above, and possibly edit the SSL variable:
#SSL=/usr/local/ssl
_ssl _ssl.c \
-DUSE_SSL -I$(SSL)/include -I$(SSL)/include/openssl \
-L$(SSL)/lib -lssl -lcrypto

5. 重新编译
make
make install

6. 测试，已可正常使用。
[root@localhost ~]# python2.7.5
Python 2.7.5 (default, Jun 3 2013, 14:56:13)
[GCC 4.1.2 20080704 (Red Hat 4.1.2-54)] on linux2
Type "help", "copyright", "credits" or "license" for more information.
>>> import ssl
>>>

ssh-copy-id 10.0.0.1

echo “10.0.0.1” >> /etc/ansible/hosts

ansible all -m ping

ansible 2 以上版本su

[root@ansible1 ~]# ansible test -b --become-method=su  --ask-become-pass -m shell  -a "id"

SU password:

zhn@127.0.0.1 | SUCCESS | rc=0 >>

uid=0(root) gid=0(root) 组=0(root) 环境=unconfined_u:unconfined_r:unconfined_t:s0-s0:c0.c1023

利用ssh跳板机访问目标网段

[root@ansible1 ~]# cat /root/.ssh/config

Host 130.51.11.*

IdentityFile=/root/.ssh/lan

ProxyCommand ssh toptea@132.120.2.5 -W %h:%p

ServerAliveInterval 30

ControlMaster no

ControlPath /tmp/%r@%h-%p.ssh

ControlPersist 600

[root@ansible1 ~]#

[root@ansible1 zhn]# cat /etc/ansible/hosts

unionmon@132.98.23.56   ansible_su_pass=Dc_ds9856

[root@ansible1 zhn]# ansible unionmon@132.98.23.56 -b --become-method=su  -m shell -a 'id'

unionmon@132.98.23.56 | SUCCESS | rc=0 >>

uid=0(root) gid=0(root) 组=0(root)

playbook使用

[root@ansible ansible]# cat pyhton.yaml

---

- name: install python27

  hosts: 130.51.1.113

  remote_user: toptea

  gather_facts: false

  become: yes

  become_method: su

  become_user: root

  tasks:

     - name: tar python.tgz

       raw: cd /tmp;tar -zxvf Python-2.7.14.tgz

     - name: install Python27

       raw: cd /tmp/Python-2.7.14;./configure ; make&& make install

     - name: create softlink to python

       raw: mv /usr/bin/python /usr/bin/pythonbak-1 ;ln -s /usr/local/bin/python2.7 /usr/bin/python

     - name: yum env

       raw: sed -ibak '1d' /usr/bin/yum ; sed -i '1i\#!/usr/bin/python2.4' /usr/bin/yum

commad模块跟shell模块区别

shell ssh远程会开一个终端bash再执行命令

command 模块不会再bash下执行不 在sshd下执行

bash功能不能用

管道输入bash功能

ansible

ansible hosts –m yum –a ‘name=tree,ksh state=installd’

ansible hosts –m yum –a ‘name=tree,ksh state=removed’

name包名 state 装包还是卸包

ansible hosts –m systemed –a ‘name=chronyd state=stopped’

name=  state=

ansible –doc modulename

/usr/lib/python2.7/site-packages/ansible

play-book(yaml文件)

在playbook文件中提前定义一系列的任务

playbook由一个或多个play组成

play中的hosts,variables.roles,tasks等对象都使用键值表示(冒号分割)

Targe:定义要执行playbook运行时需要的变量

Tasks:定义要在远程主机上执行的任务列表

Handler:定义task任务完成后需要调用的任务

Playbook输出结果使用Json格式输出。

yaml格式

空格表示结构

使用-表示数组(横线后面有一个空格)

使用:表示键值(冒号后面有一个空格)

一般每个缩进级别由2个及以上空格组成(不要使用tab)

空格的缩进级别必须对齐

yaml文件 开始行都应该是---三条横线(表示文件开始,不是必须的.但是约定俗称都是这样)

#表示注释

键值：

诗人: 李白

数组：

诗人:

-      李白

-      杜甫

-      白居易

诗人:

-      A

姓名: 李白

年代: 唐代

-      B

姓名: value

年代: value

开放式数据交换格式(文本)yaml

数据

程序支持

json格式

是纯文本文件

单引号’’字符

[]是表示数组 [‘test’,’hello’,’world’]

{}是键值,使用:分隔 {‘key’:’value’,’name’:’tom’}

()对象分组

,.分隔符，没有顺序

json示例

{ ‘诗人‘:

  [‘李白’,’杜甫’,’白居易’]

}

{ ‘诗人‘:

   [{‘李白’:’诗仙’,’年代’,’唐’},

{‘杜甫’:’诗圣’,’年代’:’唐’},

    {‘白居易‘:’诗魔’,”年代”:’唐’}

]

}

#---

  -hosts: node

   remote_user: root

   tasks:

-name: add user

 user: hello1

 uid: 1040

 group: root

-name: chage pass

 shell: echo”123”| passwd –stdin hello1

-shell: chage –d ,0 hello1

python-jinja2

#---

  -hosts: node

   remote_user: root

   vars:

    user: hello4

    group: root

    uid: 1044

   tasks:

-name: add user

 user:

name: “{{user.name}}”

   uid: “{{user.uid}}”

   group: “{{user.group}}”

-name: chage pass

 shell: echo”123”| passwd –stdin “{{user.name}}”

-shell: chage –d ,0 “{{user.name}}”

ansible-playbook –e参数可以传递不用的变量

‘{“user“:{“name”:”user”,”group”:”root”}}‘

重复利用playbook文件的另一种方式

vi var,user

user:

  name: “user3”

group: “root”

ansible-playbook test.yaml –e ‘@var.user‘
